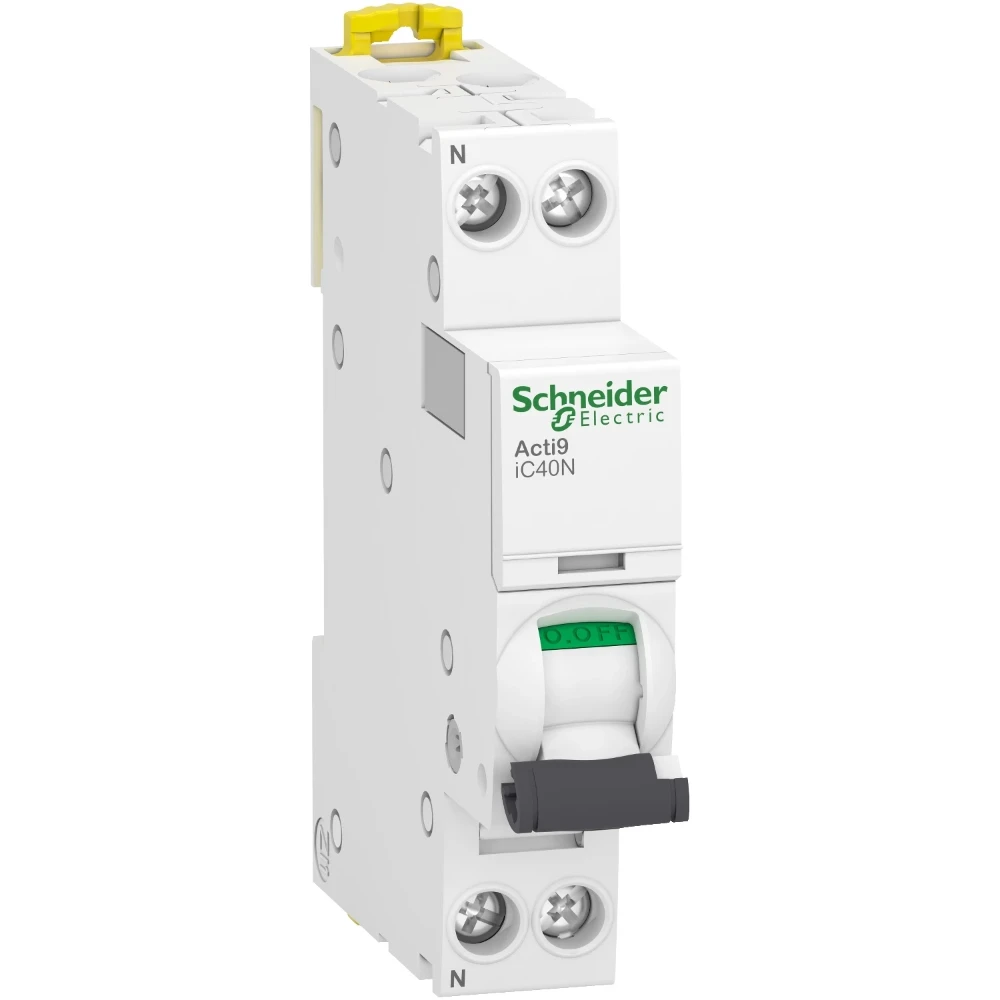

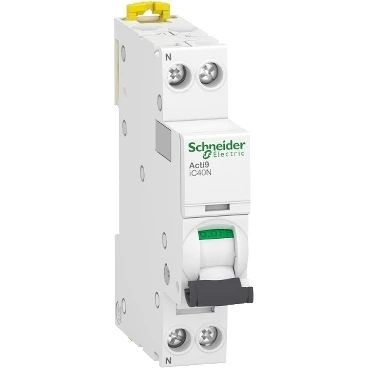

40A MCB Acti9 iC40N 6KA SP+N TYPE C

This Acti9 iC40N product is a low voltage miniature circuit breaker, with 1 protected pole, 40A In rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10kA at 230V AC conforming to EN/IEC 60947-2 standard and 6000A at 230V AC conforming to EN/IEC 60898-1 standard. This MCB combines functions of circuit protection against short circuit and overload current, control and isolation. The installation and cabling are simplified with clip on function as well as ease of maintenance. It has an electrical endurance going up to 20000 cycles and a mechanical endurance going up to 20000 cycles. The operating frequency is 50Hz or 60Hz. It can be mounted on DIN rail for modular installation. Dimensions: (W) 18mm x (H) 85mm x (D) 74mm. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. Complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2.

• Rated 40A
• Single pole +N
• C curve
